Cisco – UCS C220 M4 LFF w/o CPU, mem, HD, PCIe, PSU, rail kit
32,799.00 + VAT
| Brand Name: | Cisco |
| Part Number: | UCSC-C220-M4L +Â UCSC-MRAID12G + UCSC-PSU1-770W + UCSC-PSU1-770W + UCS-CPU-E52690E + UCS-CPU-E52690E + UCS-HD300G15KHY-E + UCS-HD300G15KHY-E + UCS-HD300G15KHY-E + UCS-MR-1X322RV-A |
| Product Type: | Cisco -UCS C220 M4 LFF w/o CPU, mem, HD, PCIe, PSU, rail kit |
| Specification: | Please refer Datasheet on ManufacturerWebsite |
| Warranty: | Manufacturer Standard Warranty. |
3 in stock
Compare
SKU: UCSC-C220-M4L-UCSC-MRAID12G
Categories: Equipment’s, Routers & Switches
Tags: Cisco, Equipment's & Router's
Description
Cisco – UCS C220 M4 LFF w/o CPU, mem, HD, PCIe, PSU, rail kit
Detail
Cisco – UCS C220 M4 LFF w/o CPU, mem, HD, PCIe, PSU, rail kit
UCSC-C240-M4L
The Cisco UCS C240 M4 LFF 12 HD (Large Form Factor, 12 Hard Drive) model without CPU, memory, hard drives, PCIe cards, power supplies, or rail kit is a bare bone 2U rack server designed for enterprise-class workloads requiring high storage capacity and I/O performance.
 Key Specifications
- Form Factor: 2U rack-mounted chassis
- Processor Support: Up to two Intel Xeon E5-2600 v3 or v4 series CPUs
- Memory: 24 DDR4 DIMM slots supporting up to 1.5 TB of memory (RDIMMs or LRDIMMs)
- Storage:
- Up to 12 front-accessible, hot-swappable 3.5-inch SAS/SATA hard drives
- Optional internal SATA boot drives
- PCIe Expansion:
- Up to 6 PCIe 3.0 slots (4 full-height, full-length)
- Modular LAN-on-motherboard (mLOM) slot for network interface cards
- Networking:
- Dual 1-Gbps Ethernet ports
- mLOM slot for additional network adapters
- Power Supply Options:
- Hot-plug, redundant power supplies (650W, 930W DC, 1200W, or 1400W AC)
- Cooling: Six hot-swappable fan modules
- Management: Cisco Integrated Management Controller (IMC) with web interface, KVM, and IPMI support
- Security: Trusted Platform Module (TPM) 1.2/2.0 support, locking bezel option
UCSC-MRAID12G
The Cisco UCSC-MRAID12G is a 12Gb/s SAS Modular RAID Controller designed for Cisco UCS servers, offering enhanced data protection and performance for connected storage devices.
 Key Specifications
- Host Interface: PCI Express
- Controller Type: 12Gb/s SAS
- RAID Levels Supported: 0, 1, 10, JBOD
- Maximum Number of Drives Supported: Up to 24 internal SAS drives on the 24-drive backplane version of the server; up to 16 drives on the 16-drive backplane version; or up to 8 drives on the 8-drive backplane version.
- Cache Memory Options:
- 512MB Flash-Backed Write Cache (FBWC)
- 1GB FBWC
- 4GB FBWC
- Data Transfer Rate: Up to 12 GBps
- Form Factor: Plug-in card
- Compatibility: Cisco UCS C220 M4, C240 M4, Smart Play 8 C220, Smart Play 8 C240
 Features
- High-Speed Data Transfer: Supports 12Gb/s SAS interface for rapid data access and transfer.
- Flexible RAID Configuration: Offers multiple RAID levels to balance performance and data redundancy.
- Modular Design: Easily integrates into Cisco UCS servers, supporting scalable storage configurations.
- Flash-Backed Write Cache: Ensures data integrity during unexpected power losses.
 UCSC-PSU1-770W
| Category | Specification |
| Manufacturer | Cisco Systems, Inc. |
| Model Number | UCSC-PSU1-770W |
| Product Type | Hot-pluggable, redundant power supply module |
| Output Power | 770 Watts |
| Output Voltage | 12 V DC |
| Input Voltage | AC 100–240 V |
| Input Frequency | 47–63 Hz |
| Efficiency Rating | 80 PLUS Platinum |
| Form Factor | Plug-in module, hot-pluggable |
| Compatibility | Cisco UCS C220 M4, Smart Play 8 C220 |
| Certifications | RoHS compliant, Energy Star: No, Environmentally Friendly: Yes |
| Weight | Approximately 2 lbs (0.91 kg) |
| Dimensions | 310 x 140 x 102 mm (L x W x H) |

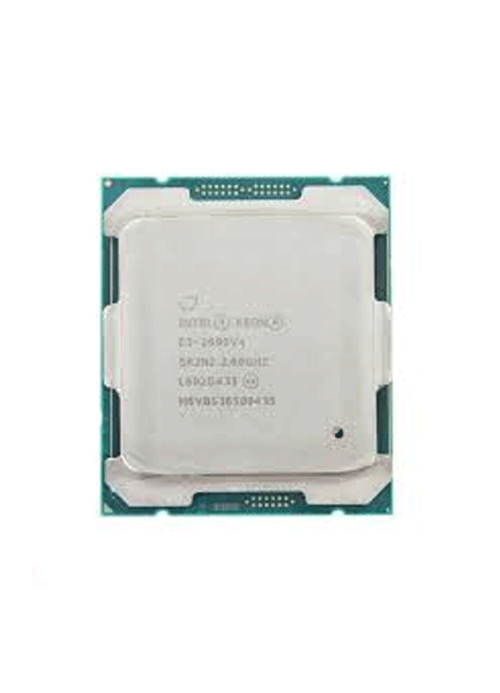

UCS-CPU-E52690E
| Category | Specification |
| Manufacturer | Cisco Systems, Inc. |
| Model Number | UCS-CPU-E52690E |
| Processor Family | Intel Xeon E5-2600 v4 |
| Processor Model | E5-2690 v4 |
| Core Count | 14 cores (Tetradeca-core) |
| Thread Count | 28 threads |
| Base Clock Speed | 2.60 GHz |
| Max Turbo Frequency | 3.50 GHz |
| Cache Memory | 3.5 MB L2 Cache, 35 MB L3 Cache |
| Socket Type | LGA 2011-3 (FCLGA2011-3) |
| Lithography | 14 nm |
| Thermal Design Power | 135 Watts |
| QPI Speed | 9.6 GT/s |
| Memory Support | DDR4 1600/1866/2133/2400 MHz |
| ECC Support | Yes |
| Max Memory Capacity | 1.54 TB (with 4-channel memory) |
| PCIe Version | 3.0 |
| Max PCIe Lanes | 40 |
| Virtualization Support | Intel VT-x, VT-d, EPT, TSX-NI, AES-NI, Turbo Boost 2.0, SpeedStep, Trusted Execution |
| Compatibility | Cisco UCS C220 M4, B200 M4, and other LGA 2011-3 compatible servers |
| Product Type | Server Processor Upgrade |
| Product Dimensions | 2.1″ x 2.0″ (53.3 mm x 50.8 mm) |

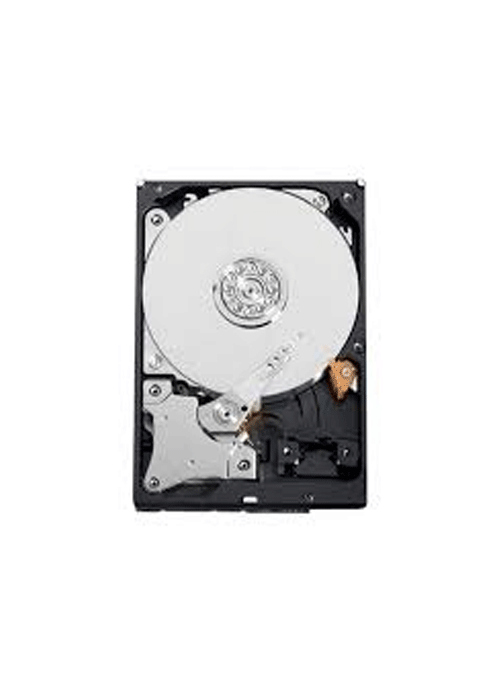

UCS-HD300G15KHY-E HDD
| Category | Specification |
| Manufacturer | Cisco Systems, Inc. |
| Model Number | UCS-HD300G15KHY-E |
| Product Type | Hybrid Hard Drive |
| Capacity | 300 GB |
| Form Factor | 3.5 inches |
| Interface | SAS 6Gb/s |
| Spindle Speed | 15,000 RPM |
| Hot-Swap Support | Yes |
| Drive Type | Hybrid HDD (combines SSD and HDD technologies) |
| Compatibility | Cisco UCS C-Series Rack Servers (e.g., C220 M3, C240 M3) |
| Product Dimensions | 147 mm x 101.6 mm x 26.1 mm (L x W x H) |
| Weight | Approximately 0.7 kg |
UCS-MR-1X322RV-A
| Category | Specification |
| Manufacturer | Cisco Systems, Inc. |
| Model Number | UCS-MR-1X322RV-A |
| Product Type | Registered ECC DDR4 Memory Module |
| Capacity | 32 GB |
| Memory Type | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Speed | 2400 MHz (PC4-19200) |
| Voltage | 1.2 V |
| CAS Latency | CL17 |
| Rank | Dual Rank |
| Data Width | x4 |
| ECC Support | Yes (Error-Correcting Code) |
| Signal Processing | Registered |
| Compatibility | Cisco UCS C-Series Rack Servers (e.g., C220 M4, C240 M4) |
| UNSPSC Code | 43201402 |
| EAN/UPC | 0882658887680 |
