Description

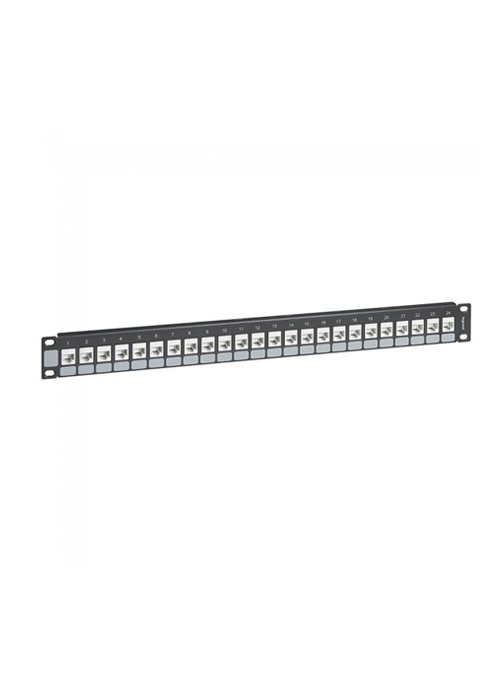

Nexans-Lanmark PatchPanel 24Snap-In Black-Empty

Brand Name: Nexans

Part Number : N521-661BK

Product Type: Cat 6 UTP Patch panel -Unloaded

Specification : Please Refer Datasheet on Manufacturer Website Click Here

Warranty : Manufacturer Standard Warranty

Best Nexans-Lanmark PatchPanel 24Snap-In Black-Empty in Saudi Arabia at Riyadh KSA

Lowest Price Nexans-Lanmark PatchPanel 24Snap-In Black-Empty in Saudi Arabia at Riyadh KSA
eKhalas is the Best Online Store In Saudi Arabia, Riyadh KSA

Details

1. Nexans Snap-In range of patch panels are designed to accommodate any of the SnapIn connectors in the LANmark product family (LANmark-7A, LANmark-7, LANmark-6A,
   LANmark-6, and LANmark-5).
2. The Snap-In panels feature an exclusive Clip-On system to secure the connector
   in the panel and to provide a simple means of earthing shielded connectors to facilitate
   installation. Connection of the panel to earth is achieved with a unique Auto-Connect
   feature removing the need for individual bonding conductors.
3. The panels also have a series of complementary cable management products such as
   blank panels and patch cord guides.
4. The patch panels are designed for standard 19″ enclosures, are 1U high, and support
   the following common features:? ? ? ? ? ? ? ? ? ? ?- 24 Ports with shutters- Designed for Screened and Unscreened Snap-In connectors- Compatible with all performance categories of connector

   – Clip-On mechanism for simple earthing

   – Exclusive rear cable management facilities

   – Robust construction

   – Printed numbering for port labelling

5. This panel features vertical “T” clips for rapid cable retention which allows loading of
   the panel in around 25% of the time needed to fasten tie wraps which leads to time
   saving during installation.CHARACTERISTICSConstruction characteristics

   Colour: Black

   Material: Steel

   Dimensional characteristics

   Heightunit:1 U

   Depth: 75 mm

   Width :19 inches

   Wall thickness – mm

   Approximate weight per piece :0.65 kg

   Usage characteristics

   Field of application: Fixed installations

   Resistance to vibrations??? ?-

   Mechanical Resistance: Good mechanical resistance

   Mechanical durability/matings –

   Number of ports: 24

   Packaging: Box
