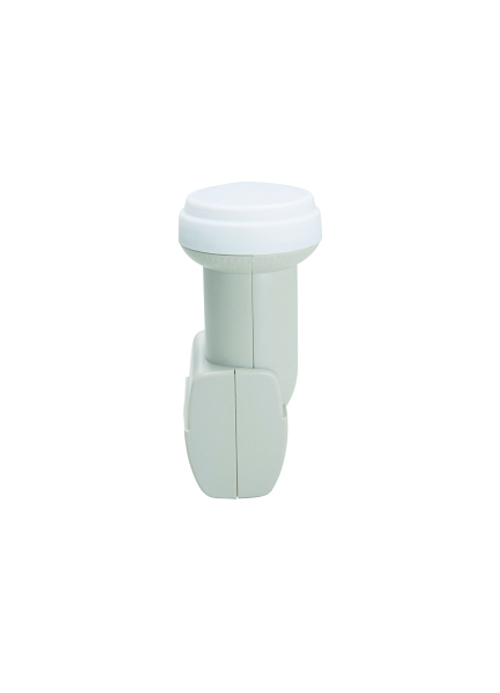

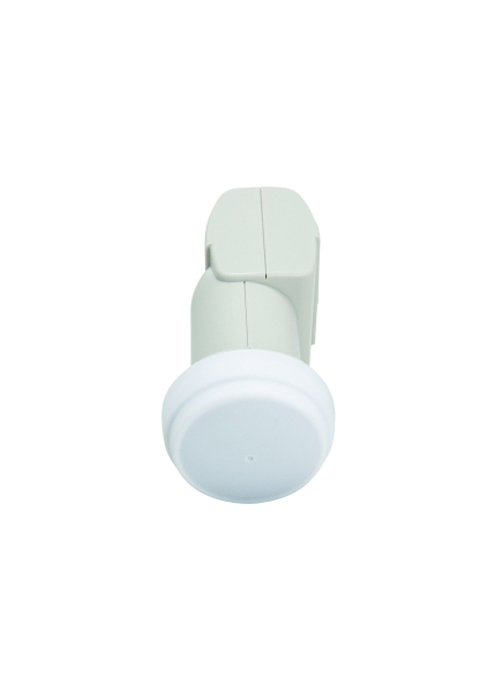

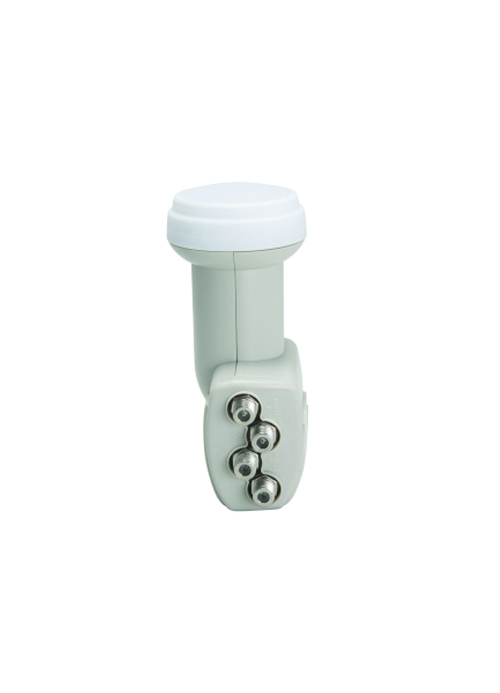

Triax THQT 002 Universal Quattro LNB High Gain (304816)
Brand Name: Triax
Part Number: 304816
Product Type: Triax THQT 002 Universal QUATTRO LNB High Gain
Specification: Please Click here for Datasheet
Warranty: Manufacturer Standard Warranty.
TRIAX complete range of LNB’s
- High Gain
- Great quality, low footprint
- Cutting edge RF technology
- Excellent Cross polar isolation
- Excellent low noise / low phase noise
- High output / low power consumption
- Weatherproof & qualified for harsh environments
- Complete range of Single, Twin, Quad, Quattro and High Gain types
CHARACTERISTICS | |
Phase noise @ room temperature – 1 kHz | –60 dBc/Hz |
Phase noise @ room temperature – 10 kHz | –80 dBc/Hz |
Phase noise @ room temperature – 100 kHz | –100 dBc/Hz |
Spurious level | –60 (max.) dBm |
Image rejection (min.) | 40 dB |
Feedhorn diameter | Ø 40 mm |
Frequency stability (-40 ~ +60 °C) | ±1 MHz |
LNB type | Quattro |
FREQUENCY | |
Input frequency low band | 10.7…11,7 GHz |
Input frequency high band | 11,7 – 12,75 GHz |
Output frequency low band | 950…2150 MHz |
L.O. frequency low band | 9.75 GHz |
L.O. frequency high band | 10.6 GHz |
GAIN | |
Gain flatness (across 26 MHz segm) | ±1.0 (typ.) dB |
Conversion gain (typ.) | 60…72 dB |
Noise figure max. | typ 0.3 dB |
ISOLATION | |
Cross polarization isolation | 20 min dB |
ELECTRICAL | |
Impedance | 75 Ω |
OPERATIONAL | |
DC Current consumption | 195 mA |
Operating voltage vertical | 10.5…14.5 V/DC |
Operating voltage horizontal | 15.5…21.0 V/DC |
Temperature – operating | -30…60 °C |
CONNECTORS | |
Connector Type | F-female |
MECHANICAL | |
Reflector type | Offset |
Max. depth incl. feedhorn | 133 mm |
Product size (H x D x W) | 136 x 49 x 83 mm |
Weight | 0.260 kg |
