Cisco – Catalyst 3650 24 Port PoE 2x10G Uplink IP Base.

⃁20,427.00

23 in stock

Sold: 0
Available: 23



Brand Name: Cisco
Part Number: WS-C3650-24PD-S + PWR-C2-640WAC + PWR-C2-640WAC/2 + C3650-Stack + C3650-Stack + Stack-T2-50CM
Product Type: Cisco – Catalyst 3650 24 Port PoE 2x10G Uplink IP Base.
Specification: Please refer Datasheet on ManufacturerWebsite
Warranty: Manufacturer Standard Warranty.

SKU: WS-C3650-24PD-S

Cisco – Catalyst 3650 24 Port PoE 2x10G Uplink IP Base.

Details:

Cisco – Catalyst 3650 24 Port PoE 2x10G Uplink IP Base.

Description:

Cisco catalyst C3650-24PD-S is the next generation standalone with stack option switch. IP base feature set with 24 Gigabit Ethernet POE+ ports and 2 x 1G SFP and 2 x 10G SFP+ uplink ports, WS-C3650-24PD-S  is designed for access layer or distribution layer for enterprise. 3650 series in IP base feature set combines both wired and wireless capacity on a single platform and supports up to 25 APs and 1000 clients for wireless connection.

Product Code WS-C3650-24PD-S
Ports 24 x 10/100/1000 (POE+)
Unlink Interfaces 2 x 10G SFP+ & 2 x 1G SFP
Network management Interface
  • Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
  • Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power 390W
Switching Capacity 88Gbps
Maximum stacking number 9
Stack Bandwidth 160Gbps
Forwarding Performance 68.45Mpps
RAM 4 G
Number of AP per switch/stack 50
Number of wireless clients per switch/stack 1000
Manufacturer Warranty 1 year warranty

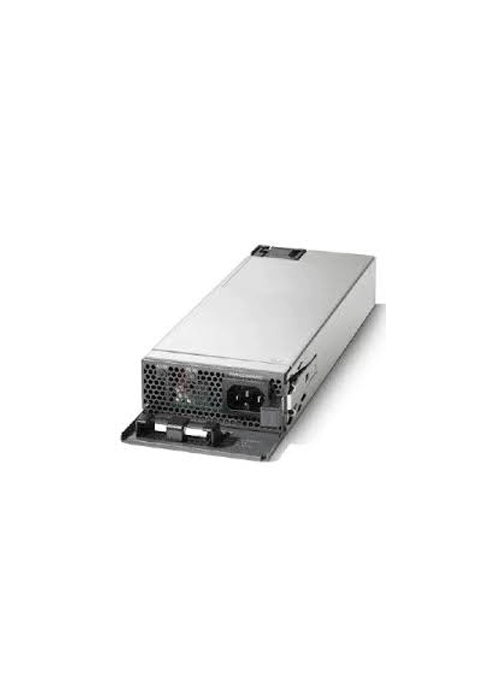

PWR-C2-640WAC

PWR-C2-640WAC is a Cisco Catalyst Switch 3650 Series Switch Power Supply, delivering 640W AC power for Cisco 3650 switches. Notice that PWR-C2-640WAC= is similar with PWR-C2-640WAC, except that PWR-C2-640WAC is a spare one. Both of them deliver the same function and same price.

Product Code PWR-C2-640WAC=
Maximum output power 640 W
Input voltage range and frequency 640 W, 100 to 240 VAC (auto ranging), 50 to 60 Hz
Input current 8–4 A
Output ratings +12 V @ 20.83 A, –54 V@7.36 A
Total input BTU 2371 BTUs per hour, 695 W
Total output BTU 2183 BTUs per hour, 640 W
Storage temperature 40 to 158° F (–40 to 70° C)
Relative humidity 5 to 96% (noncondensing)
Altitude AC power supply: Up to 16,400 feet (5,000 m)
Net Weight 3.1 lb (1.41 kg)
Physical Specifications: Dimensions (H x W x D) 1.58 x 3.75 x 11.75 in. (4.0 x 9.5 x 29.8 cm)

PWR-C2-640WAC/2

PWR-C2-640WAC/2 is a Cisco Catalyst Switch 3650 Series Switch Power Supply, delivering 640W AC power for Cisco 3650 switches. Notice that PWR-C2-640WAC is similar with PWR-C2-640WAC/2, except that PWR-C2-640WAC/2 is a spare one. Both of them deliver the same function and same price.

Product Code PWR-C2-640WAC/2
Maximum output power 640 W
Input voltage range and frequency 640 W, 100 to 240 VAC (auto ranging), 50 to 60 Hz
Input current 8–4 A
Output ratings +12 V @ 20.83 A, –54 V@7.36 A
Total input BTU 2371 BTUs per hour, 695 W
Total output BTU 2183 BTUs per hour, 640 W
Storage temperature 40 to 158° F (–40 to 70° C)
Relative humidity 5 to 96% (noncondensing)
Altitude AC power supply: Up to 16,400 feet (5,000 m)
Net Weight 3.1 lb (1.41 kg)
Physical Specifications: Dimensions (H x W x D) 1.58 x 3.75 x 11.75 in. (4.0 x 9.5 x 29.8 cm)

C3650-STACK

The Cisco C3650-STACK is a stack module spare designed for the Cisco Catalyst 3650 series switches. It allows for easy stacking of multiple switches, providing a unified management interface and increased scalability. With its compact design and high-performance capabilities, this stack module is a reliable solution for enhancing network performance and simplifying network management.

Product Name C3650-STACK
Form Factor External
Type Network stacking module
Data Transfer Rate 160 Gbps
Manufacturer Cisco Systems

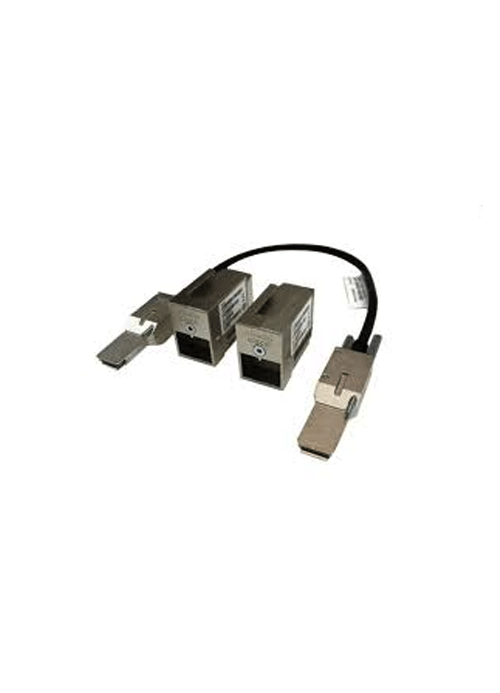

STACK-T2-50CM

Cisco STACK-T2-50CM is a 50CM Type 2 Stacking Cable Spare, designed to provide stacking connectivity for Cisco switches. This stacking cable ensures reliable and flexible stacking of multiple switches, enabling simplified management and improved network performance.

Product Name STACK-T2-50CM
Product Type Network Cable
Cable Characteristic Stacking Cable
Device Supported Network Device



Brand

CISCO
